Angled profile connector (K-23)

Angled profile connector (K-23)

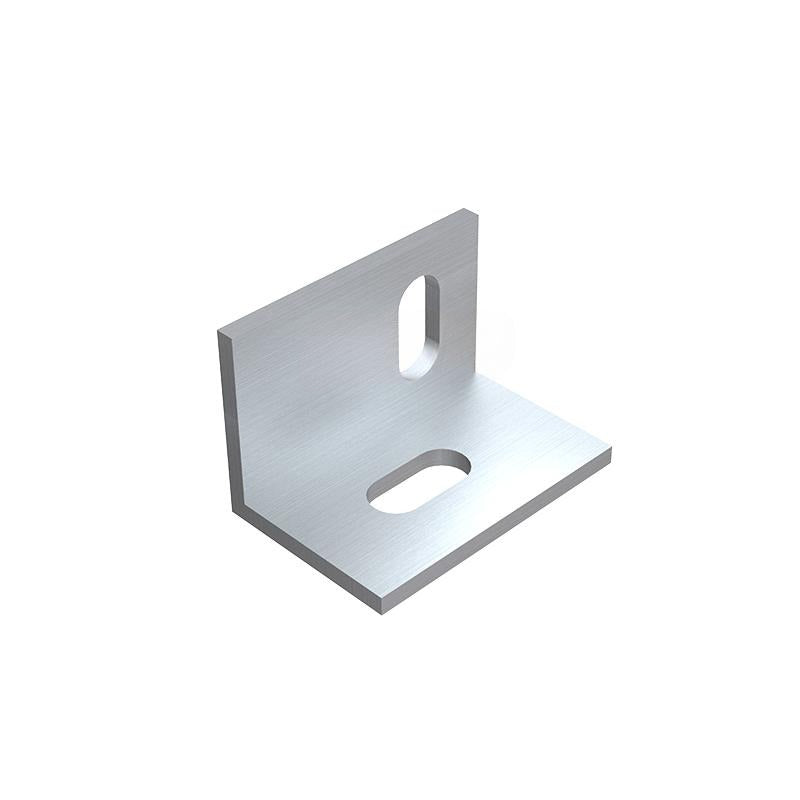

The K-23 angled profile connector is a robust aluminum angle connector for the secure and precise connection of photovoltaic mounting rails at a 90° angle. It is used for reinforcing, cross-connecting, or fixing frame structures and ensures a durable, torsion-resistant connection – ideal for rooftop and ground-mounted systems .

Technical Data & Features

• Product type: K-23
• Material: aluminum (EN AW-6063 T66)
• Angle: 90°
• Dimensions: approx. 65 × 65 × 5 mm
• Holes: 4x Ø8 mm – suitable for M8 screws
• Assembly: screwing onto the profiles from both sides
• Compatible with K-series mounting rails and T-slot systems
• Corrosion-resistant, UV-stable and maintenance-free

Advantages & Application

• Enables right-angle connections of mounting rails
• High stability and torsional rigidity thanks to solid aluminum
• Precisely machined holes for accurate assembly
• Easy mounting with M8 screws
• Weatherproof and durable
• Compatible with all common K-mounting systems

Assembly & Compatibility

The K-23 profile connector is used for the right-angle connection of two photovoltaic mounting rails and is secured on both sides with M8 screws. It ensures a stable connection with minimal weight and is ideal for substructures , cross connectors, or frame reinforcements. The connector is fully compatible with the K-series rails from Voltaik.shop as well as with standard T-slot systems from other manufacturers.

Quality & Safety

• Made from high-quality aluminum EN AW-6063 T66
• CE compliant and tested for photovoltaic applications
• High dimensional accuracy and stable fit
• Corrosion-resistant and UV-stable
• Durable, dimensionally stable and maintenance-free

FAQ

• When is the angled profile connector K-23 used?
  Answer: For right-angled connections of mounting rails, cross braces or reinforcing profiles.
• Which systems is the K-23 compatible with?
  Answer: With all K-series mounting rails from Voltaik.shop and common T-slot profiles .
• What material is the connector made of?
  Answer: Made from high-quality anodized aluminum for maximum stability and corrosion resistance.

Advice & Contact

Do you want to know if the angled profile connector K-23 is compatible with your mounting system or which version you need for your construction? Our team at Voltaik.shop will be happy to help – by phone at ☎ +43 (0)720 111 050 or by email at 📧 service@voltaik.shop .

Rely on stability, precision and quality – with the angled profile connector (K-23) for durable photovoltaic mounting systems .
