Aluminum roof hook with dual adjustment option K-64

Aluminum roof hook with dual adjustment option (K-64)

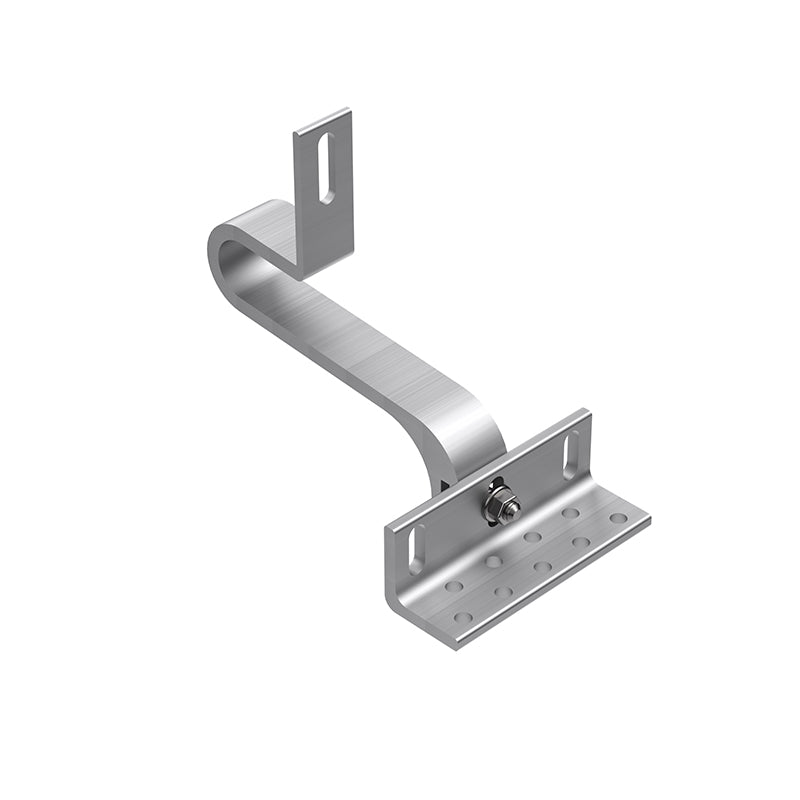

The K-64 roof hook, made of high-quality aluminum, is a lightweight, corrosion-resistant, and versatile mounting hook for photovoltaic systems on tiled roofs. With its dual adjustability in height and lateral position, the hook can be optimally adapted to different roof tile shapes and substructures – ensuring precise and stress-free installation of the PV rails.

Technical Data & Features

• Product type: K-64
• Material: aluminum (EN AW-6063 T66)
• Adjustment options: adjustable in two ways – height and side adjustable
• Base plate: 150 × 30 × 5 mm with elongated holes
• Tab: adjustable arm with slotted guide
• Assembly: Screw connection with stainless steel components (M10)
• Compatible with K-series mounting rails and T-slot systems
• Corrosion and weather resistant
• Lightweight construction – ideal for modern roof systems

Advantages & Application

• Lightweight yet extremely stable thanks to its aluminum construction
• Dual adjustment for optimal adaptation to roof tile shapes
• Suitable for tile, standing seam and concrete roofs
• No risk of corrosion or rust
• Ideal for weight-sensitive roof constructions
• Compatible with common PV mounting systems

Assembly & Compatibility

The K-64 roof hook is mounted directly onto the roof rafters and serves as a secure connection between the roof structure and the mounting rails . Its dual adjustability allows the hook to be precisely aligned with the specific roof pitch and tile height. It is fully compatible with the K-series rails from Voltaik.shop as well as with standard T-slot systems from other manufacturers. Its light weight and high weather resistance make it the ideal choice for long-lasting photovoltaic systems.

Quality & Safety

• Made from corrosion-resistant aluminum
• CE compliant and tested for PV systems
• Lightweight construction with high stability
• UV, weather and corrosion resistant
• Slotted holes for precise adjustment
• Maintenance-free and durable

FAQ

• For which roofs is the roof hook suitable?
  Answer: For brick, standing seam and concrete roofs – ideal when a lightweight, rust-free construction is required.
• What material is the hook made of?
  Answer: Made of high-quality aluminum EN AW-6063 T66 with stainless steel connectors.
• What advantages does aluminium have over stainless steel?
  Answer: Aluminum is lighter, corrosion-free, and particularly suitable for roofs with lower load-bearing capacity.

Advice & Contact

Do you want to know if the K-64 aluminum roof hook is compatible with your roofing system, or which hooks you need for your project? Our team at Voltaik.shop is happy to help – by phone at ☎ +43 (0)720 111 050 or by email at 📧 service@voltaik.shop .

Rely on stability, lightweight construction and precision – with the aluminium roof hook with dual adjustment option (K-64) for safe and durable photovoltaic mounting systems .
