HUAWEI_SUN2000-450W-P2

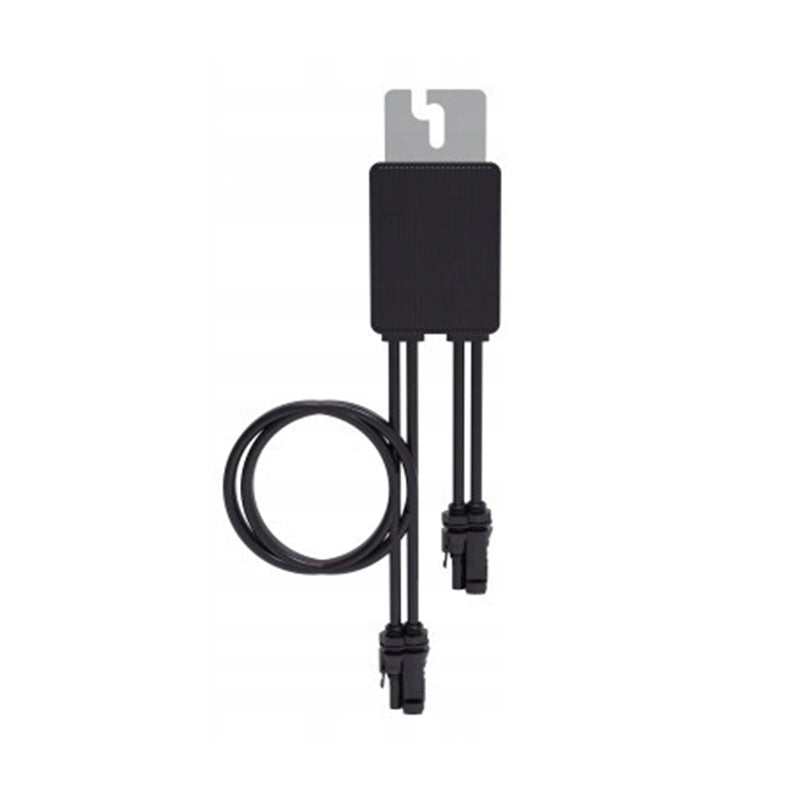

Huawei Smart PV Optimizer 450W (Version P2)

The Huawei Smart PV Optimizer 450W (Version P2) is an intelligent module optimizer that maximizes the performance of each individual solar module . It increases energy yield even with partial shading or varying roof pitches, while ensuring maximum system safety thanks to its integrated rapid shutdown function. Ideal for single-family homes, multi-family buildings, and commercial installations.

Technical Data & Features

• Maximum power per module: 450 W
• Maximum input voltage: 80 V
• Maximum input current: 13 A
• Efficiency: up to 99.5%
• MPPT voltage range: 10 V – 80 V
• Protection class: IP68 – dustproof and waterproof
• Operating temperature: -40 °C to +85 °C
• Dimensions: 71 × 138 × 25 mm
• Weight: approx. 550 g
• Communication: MBUS – for fast, interference-free data transmission
• Compatible with all Huawei SUN2000 inverters (L1, M1, M2, M3)

Advantages & Applications

• Maximizes the energy yield of each module – ideal for partial shading or mixed roof orientations.
• Increases operational reliability through automatic shutdown during maintenance or emergencies.
• Enables module-by-module monitoring and rapid fault analysis
• Improves efficiency with different string lengths or roof pitches.
• Suitable for new buildings and retrofitting of existing PV systems

Assembly & Commissioning

The Huawei Smart PV Optimizer 450W P2 is installed directly under the solar panel and integrated into the electrical circuit using MC4 connectors. With its IP68 protection rating, it is completely weatherproof and optimized for outdoor use. Automatic detection (auto-mapping) via the inverter takes only a few seconds, making installation particularly easy and safe.

Certifications & Security

• CE and TÜV certified according to European standards
• Meets safety requirements according to IEC 62109-1 and VDE-AR-E 2100-712
• Integrated overcurrent and overtemperature protection
• Bypass function in case of module failure
• Automatic rapid shutdown in case of emergency

Economic efficiency

• Increase in total yield by up to 30% in case of shading
• Reduced maintenance costs through module-specific monitoring
• High durability thanks to robust design and precise manufacturing
• Zero tax rate possible for deliveries within the context of a photovoltaic system

FAQ

• Is the optimizer compatible with all Huawei inverters?
  Answer: Yes, it works with all Huawei SUN2000 series devices that support MBUS communication.
• Can the optimizer be retrofitted to existing systems?
  Answer: Yes, the TS4-AO can be easily integrated into existing Huawei systems.
• What happens if an optimizer fails?
  Answer: The bypass ensures that the string continues to work without significantly impacting overall performance.

Advice & Contact

Do you want to know if the Huawei Smart PV Optimizer 450W (Version P2) is compatible with your photovoltaic system or how many optimizers you need? Our team at Voltaik.shop will be happy to advise you – by phone at ☎ +43 (0)720 111 050 or by email at 📧 service@voltaik.shop .

Increase the efficiency, safety and performance of your system – with the Huawei Smart PV Optimizer 450W (P2) as an intelligent addition to your modern photovoltaic system .

📎 Documentation downloads

• Quick guide SUN2000-450W-P2
