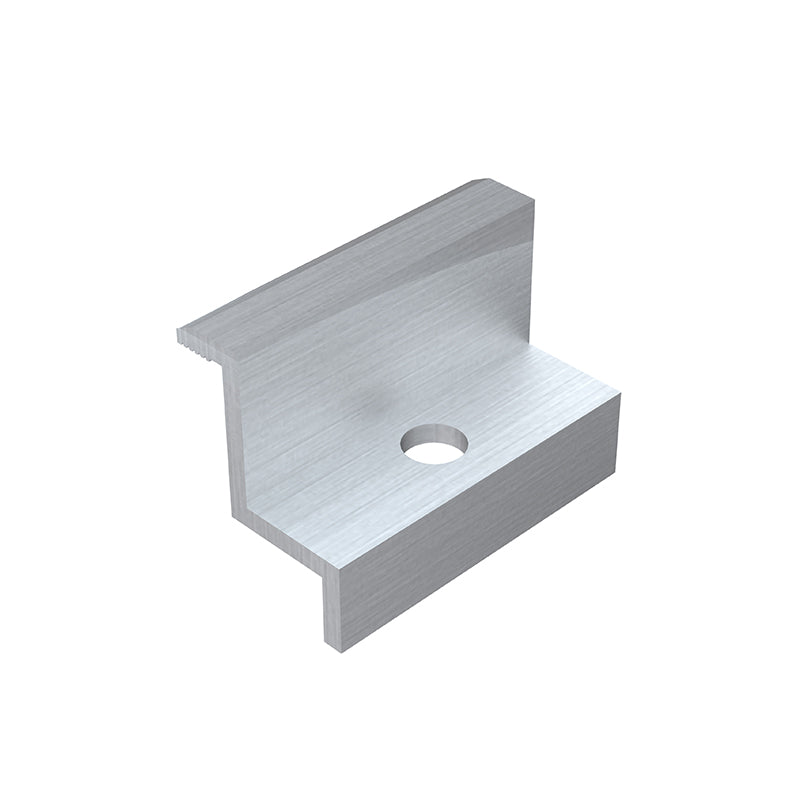

End clamp 30mm (K-06-30)

End clamp 30 mm (K-06-30)

The K-06-30 end clamp is a robust and precisely manufactured termination clamp for the secure fastening of photovoltaic modules with a frame height of 30 mm . It reliably fixes the outer modules to the mounting profile and ensures a clean, stable and durable connection – perfect for professional PV installations on pitched and flat roofs.

Technical Data & Features

• Product type: K-06-30
• Module frame height: 30 mm
• Material: aluminum (EN AW-6063 T66)
• Color: silver anodized – UV and corrosion resistant
• Screw: M8 stainless steel (A2/A4)
• Compatible with K-01, K-36, K-70 and other profiles with T-slot system
• Assembly: Simple fixing using a T-screw and flange nut
• High clamping force and even pressure distribution

Advantages & Application

• Suitable for photovoltaic modules with a 30 mm frame height
• Secure and permanent module mounting
• Easy to assemble – quick installation
• High-quality aluminum alloy for maximum stability
• Corrosion-resistant – ideal for outdoor use
• Compatible with common PV mounting systems

Assembly & Compatibility

The K-06-30 end clamp is inserted at the outer edge of the module and securely fixes the solar module to the mounting profile . It is fully compatible with all K-series profiles from Voltaik.shop as well as with standard profiles from other manufacturers. Attachment is achieved using an M8 T-bolt and a flange nut, which lock into the T-slot of the profile. This creates a stable and durable connection with high contact pressure.

Quality & Safety

• Manufactured according to European quality standards
• CE compliant and TÜV-tested for PV systems
• Corrosion-resistant materials (aluminum and stainless steel)
• High clamping force – vibration-proof and maintenance-free
• Durable and dimensionally stable for continuous outdoor use

FAQ

• For which modules is the terminal suitable?
  Answer: For solar modules with a frame height of 30 mm .
• Which profiles is it compatible with?
  Answer: With the K-01, K-36, K-70 aluminum profiles and other T-slot systems.
• Is the clamp also available in black?
  Answer: Yes, the K-06-30-CZ is the black version – ideal for Blackline systems.

Advice & Contact

Do you want to know if the K-06-30 end terminal is compatible with your modules or profiles? Our team at Voltaik.shop will be happy to advise you – by phone at ☎ +43 (0)720 111 050 or by email at 📧 service@voltaik.shop .

Rely on quality, safety and durability – with the 30 mm end clamp (K-06-30) for reliable photovoltaic mounting systems .
