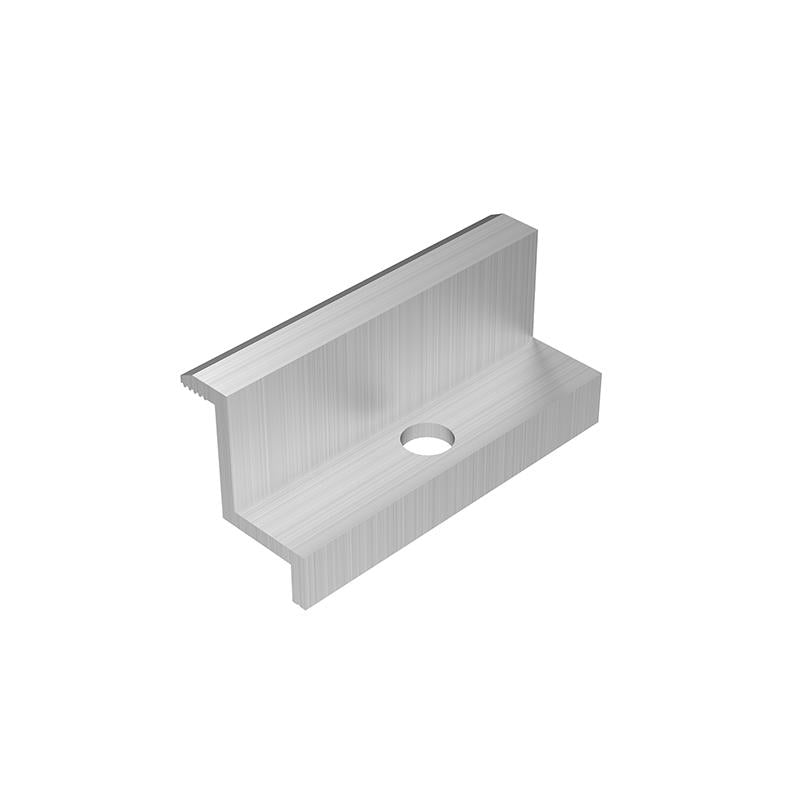

End clamp 30, 70mm (K-06-30-70)

End clamp 30-70mm (K-06-30-70)

The K-06-30-70 end clamp is a versatile termination clamp for the secure fastening of photovoltaic modules with a frame height of 30 to 70 mm . Thanks to its wide adjustment range, it is ideally suited for different module types and profile heights. The robust aluminum construction ensures a durable, corrosion-resistant, and secure connection – perfect for professional PV installations on pitched and flat roofs.

Technical Data & Features

• Product type: K-06-30-70
• Module frame height: 30–70 mm (variably adjustable)
• Material: aluminum (EN AW-6063 T66)
• Color: silver anodized – UV and corrosion resistant
• Screw: M8 stainless steel (A2/A4)
• Compatible with K-01, K-36, K-70 and other profiles with T-slot system
• Mounting: Fixing via T-screw and flange nut
• High clamping force and vibration-resistant connection

Advantages & Application

• Universally applicable for modules with a frame height of 30–70 mm
• Flexible adaptation for different module types and profile heights
• Quick and easy assembly
• Stable mounting for long-lasting systems
• Corrosion-resistant – ideal for outdoor use
• Compatible with common PV mounting systems

Assembly & Compatibility

The K-06-30-70 end clamp is mounted on the outer edge of the solar modules and securely fixes them to the mounting profile . The variable clamping range of 30 to 70 mm allows for use with different module frame heights and profile types. It is fastened using an M8 T-bolt and a flange nut in the T-slot of the profile. The clamp is compatible with the K-series profiles from Voltaik.shop as well as with standard profiles from other manufacturers.

Quality & Safety

• Manufactured according to European quality standards
• CE compliant and tested for use in photovoltaic systems
• High-quality, corrosion-resistant materials
• High dimensional accuracy and secure clamping effect
• Durable, maintenance-free and weatherproof

FAQ

• For which modules is the end terminal suitable?
  Answer: For solar modules with frame heights of 30 to 70 mm .
• Which profiles is it compatible with?
  Answer: With the K-01, K-36, K-70 aluminum profiles and other T-slot systems.
• Is the clamp also available in black?
  Answer: Yes, the K-06-30-70-CZ variant is black anodized and visually ideal for Blackline modules.

Advice & Contact

Do you want to know if the K-06-30-70 end terminal is compatible with your solar modules, or which terminals you need for your project? Our team at Voltaik.shop will be happy to help – by phone at ☎ +43 (0)720 111 050 or by email at 📧 service@voltaik.shop .

Rely on flexibility, stability and quality – with the 30–70 mm end clamp (K-06-30-70) for universal photovoltaic mounting systems .
