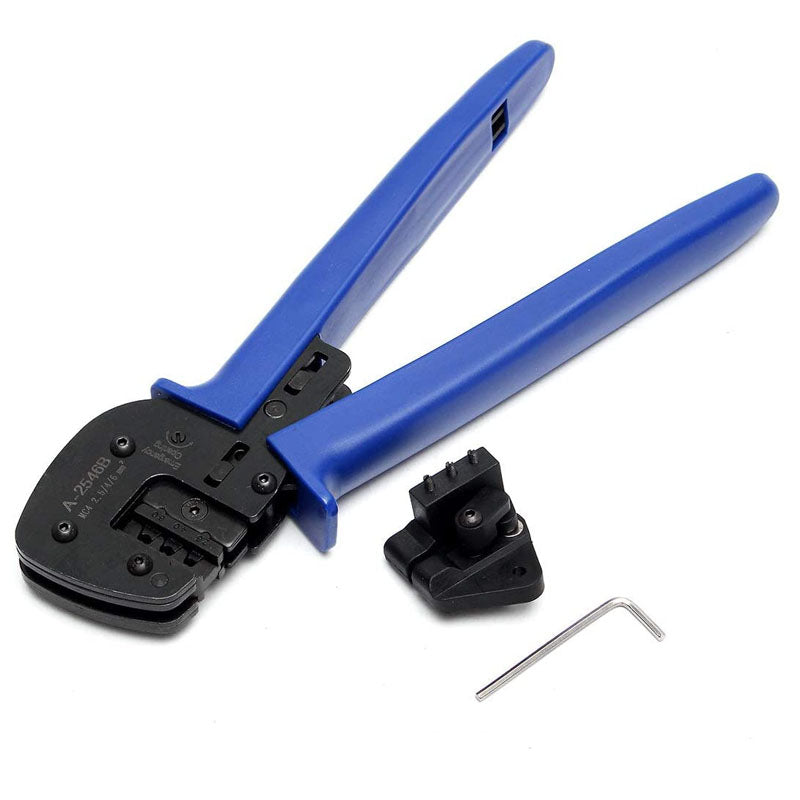

Crimping tool for MC4 connectors

Professional tool for secure MC4 connections in PV systems

The crimping tool for MC4 connectors is an indispensable assembly tool for the professional termination of DC cables in photovoltaic systems . It enables precise and standard-compliant crimping of MC4 contacts, thus ensuring permanently reliable, low-loss electrical connections on the DC side.

Especially in PV installations, a correctly executed crimp connection is crucial for operational safety, fire protection, and the long-term reliability of the PV system . This crimping tool is specifically designed for the requirements of MC4 connectors and is suitable for both professional installers and service and maintenance work.

Technical specifications

• Suitable for MC4 connectors
• Supported conductor cross-sections: 2.5 / 4 / 6 mm²
• Precision crimping jaws for even crimping
• Ratchet mechanism for reproducible crimp quality
• Ergonomic handles for fatigue-free work
• Robust metal construction for continuous use

Advantages & Applications

• Secure and standard-compliant crimp connections in the DC range
• Minimized contact resistance and heat generation
• Suitable for new installations, expansions and repairs
• Ideal for rooftop installations, carports and ground-mounted PV systems
• Professional tools for reliable PV installation

Application & Compatibility

The crimping tool for MC4 connectors is used to crimp the contact pins to the stripped solar cable . The integrated ratchet mechanism ensures that the crimping process is only released after correct crimping – guaranteeing consistently high quality with every connection.

Quality & Safety

• Consistent crimp quality for high operational reliability
• Mechanically stable connections for long-term operation
• Suitable for high DC voltages in photovoltaic systems
• Proven tool for professional PV installations

FAQ

• For which cable cross-sections is the pliers suitable?
  Answer: For 2.5 mm², 4 mm² and 6 mm² solar cables.
• Is the crimping tool only usable for MC4 connectors?
  Answer: Yes, it is specifically designed for MC4 connectors .
• Why is a special MC4 crimping tool important?
  Answer: Only a suitable crimping tool guarantees a secure, standard-compliant connection without contact resistance.

Advice & Support

Do you want to make sure you're using the right crimping tool for MC4 connectors , or do you have questions about proper PV wiring? The Voltaik.shop team will be happy to help you choose the right tool.

With the crimping tool for MC4 connectors , you create the basis for safe, durable and professional DC connections in your photovoltaic system .
